Ref. No. Part No. Part Name Qty Remarks
01
●
308S0010 Screw,special 1 E
02 342D981229A Lever 1 E
03 363D980991D Guide 1 E
04 363D980988F Guide 1 E
05 319D980989A Shaft 1 E
06 319D981055 Shaft 1 E
07 342D981056C Lever 1 E
08
●
388D980979B Spring,compression 1 E
09 319D981027A Shaft 1 E
10
●
388D981100B Spring,torsion 1 E
11 356D981098 Bracket 1 E
12 356C981096A Bracket 1 E
13 322D980995B Support,shaft 2 E
14 360D980978D Housing 1 E
15
●
388D981057B Spring,torsion 1 E
16 350D981070E Cover 1 E
17 356D1020519 Bracket 1 E
18
●
118C980967 Motor M102 1 E ORIENTAL
C8740-9012K
19 327D980986B Gear,spur 1 E
20 356C980966A Bracket 1 E
21 327D980987A Gear,spur 2 E
22 327S1101802 Gear,spur 1 E
23 356C980970B Bracket 1 E
24
●
388D980982B Spring,compression 1 E
25 338D981190 Collar 1 E
26 309D981017A Washer,plastic 1 E
27 356C980965E Bracket 1 E
28 319D980990A Shaft 1 E
29 327D980987A Gear,spur 1 E
30 327D981048 Gear,spur 1 E
31
●
388D981066D Spring,torsion 1 E
32 342D981037A Lever 1 E
33 327D981031B Rack 1 E
34 356D981079 Bracket 1 E
35 322SB023 Support,shaft 1 E
36
●
113C967186 PCB,SSD22 1 E KOHDAI
37 345D981223A Plate,shield 1 E
38 338D981075B Collar 1 E
39 34B8520452 Gear,spur 1 E
40 319C981107A Shaft 1 E
41 319D981063 Shaft 1 E
42 356C980969F Bracket 1 E
43
●
388D981065B Spring,tension 1 E
Drawing
Ref. No. Part No. Part Name Qty Remarks
44 319D981028B Shaft 1 E
45 356D980993B Bracket 1 E
46 356C980971C Bracket 1 E
47
●
388D981074 Spring,compression 1 E
48 356C981184 Bracket 1 E
49 356D981225A Bracket 1 E
50 334D981227 Roller 1 E
51
●
388D981228 Spring,tension 1 E
52 319D981226 Shaft 1 E
53 312D981275 Key 1 E
54 327D981094 Gear,spur 1 E
55 327D981087 Gear,spur 1 E
56 327D981085 Gear,spur 1 E
57 327D981093B Rack 1 E
58 31R3130400 Washer,thrust 4 E
59 342D980696 Lever 1 E
60
●
388S2173 Spring,tension 1 E
61 327D981084 Gear,spur 1 E
62 327D981086 Gear,spur 1 E
63 356C981088A Bracket 1 E
64
●
113C967184 PCB,SSB22 1 E KOHDAI
65
●
118C980777 Motor M104 1 E MITSUBISHI
MP12
66 322D980995B Support,shaft 1 E
67 319D981095C Shaft 1 E
68 31R3130400 Washer,thrust 4 E
69
●
388D981101B Spring,torsion 1 E
70 356D980697B Bracket 1 E
71 334D981026A Roller 1 E
72 322D981257A Support,shaft 2 E
73 340D980998B Knob 1 E
74
●
388D981064A Spring,tension 1 E
75 342C980976B Lever 1 E
76 342D980981B Lever 1 E
77
●
388D981274B Spring,tension 1 E
78
●
113C967182 PCB,SSA22 1 E KOHDAI
79 356D981039A Bracket 1 E
80 31R3130400 Washer,thrust 4 E
81 350D981069B Cover 1 E
A01 899C21453B0 NC100AC 1
E INDEX -A01
to -A01 inclusive
A02 810C981205C Supply section ass'y
01 350D981137E Cover 1 E
02
●
388D981156 Spring,compression 1 E
03 394S0022 Magnet 1 E MAGUNA H-12R
04 363D981136F Guide 1 E
05 363C981174B Guide 1 E
06 319D981139A Shaft 1 E
07
●
356D981125B Bracket 1 E
08 356D981157B Bracket 1 E
09 363D981135G Guide 1 E
10 319C981179B Shaft 1 E
11 322SP112 Support,shaft 2 E
12 319D981147B Shaft 1 E
13 338D981132A Collar 1 E
14 334C981168D Roller 1 E
15 318D981182 Bushing 1 E
16 334C981167D Roller 1 E
17
●
388D981153C Spring,compression 1 E
18 331C981183A Brake 1 E
19 317D981155A Cap 2 E
20 357C981180D Mount 1 E
21
●
388D981151B Spring,compression 4 E
22 332D981127C Stop 1 E
23
●
388D981151B Spring,compression 4 E
Drawing
Ref. No. Part No. Part Name Qty Remarks
24 332D981128B Stop 1 E
25 327D981118C Gear,spur 2 E
26 327D981117C Gear,spur 1 E
27 327D981118C Gear,spur 2 E
28 327D981119C Gear,spur 1 E
29 317D981155A Cap 2 E
30 180M201202T Pin,straight 1 E
31 327D981116B Gear,spur 1 E
32 322SP112 Support,shaft 2 E
33
●
388D981152B Spring,torsion 1 E
34 319D981144 Shaft 1 E
35 356D981143 Bracket 1 E
36 342D981142A Lever 1 E
37 319D981140A Shaft 1 E
38 356D981126B Bracket 1 E
39 363C981172B Guide 1 E
40 314D981149C Hinge 1 E
41 306S0037 Screw,self-tapping 14 E
42 350D981138C Cover 1 E
A01 899C21453B0 NC100AC 1
E INDEX -A01
to -A01 inclusive
A02 811C981161 Winding section 1 E
001C9196A1A Optical section 1
E
02
●
129A9011773 Fan 3 E SANYO
F801,F802,F803 109R0424H7D14
●
❍
Drawing
Ref. No. Part No. Part Name Qty Remarks
03
●
146S0030 Detector D801 1 E SHARP GP1A21
04 360C965288 Fil
01
●

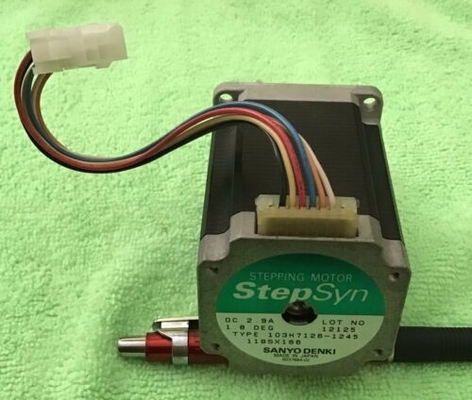

118C965813 Motor,pulse M301 1 E SANYO
103H7126-2745
02
●
323S0007 Belt,GT 1 BE UNITTA
600-3GT-9
03 363D889117E Roller 1 BE
04 336D889112C Flange,pulley 2 BE
05 357C889130A Base,drive 1 BE
06 347D889116C Spacer 3 BE
07 347D889116C Spacer 3 BE
08 336D889115D Pulley 3 BE
09 336D889112C Flange,pulley 2 BE
10 336D889115D Pulley 3 BE
11 341D889111C Arm 1 BE
12
●
388D889118C Spring,tension 1 BE
Drawing
Ref. No. Part No. Part Name Qty Remarks
13 336D889115D Pulley 3 BE
14 319D889114D Shaft 1 BE
15 356D889113D Plate,keep 1 BE
16 356D889142D Bracket 1 BE
17
●
50B7138900 Spring,compression 5 BE
18
●
32B6796291 Shaft 5 BE
19 363D965801C Plate,guide 1 E
20
●
110A7750670 PCB,DTM00 1 BE
21 356D965286A Bracket 1 E
22 356D965285E Bracket 1 E
A01
●
357C965912A Drive section ass'y 1 E
A02
●
128C965350A Magazine ID ass'y 1 E
