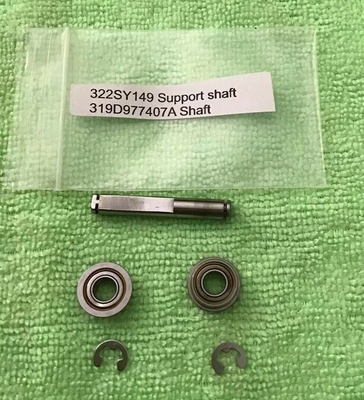

Ref. No. Part No. Part Name Qty Remarks
A02 809C965202C Receiver stand ass'y 1 E Ref.No. 0
01 363D889641 Roller 6 BE
02 319D965383A Shaft 1 E
03 363D965400D Guide 1 E
04
●
388D965443A Spring,tension 2 E
05 319D965412 Shaft 1 E
06 329D965405A Cam 2 E
07 356D990502 Bracket 1 E
08
●
388D965445A Spring,tension 1 E
09 319D965447A Shaft 1 E
10
●
322D889566 Support,shaft 11 BE
11 356D965426A Bracket 1 E
12 347D965442A Plate,adjustment 2 E
13
●
322SP114 Support,shaft 2 E
14 327D965407B Gear,spur 1 E
15
●
322SP212 Support,shaft 2
16 327D965407B Gear,spur 1 E
17
●
322D889565 Support,shaft 1 BE FKK
18
●
118SX163 Motor,pulse M302 1 E SANYO
103G770-2264
19
●
118SX161 Motor,pulse M313 1 E SANYO
103-546-5245
20 327D990515A Gear,spur 1 E
21 356D990514 Bracket 1 E
22
●
322C965451D Support,shaft 12 E
23 329D965449A Cam 1 E
24
●
146S0029 Detector D319 1 E SHARP
GP1A73A
25 356D965425B Bracket 1 E
26 355C1023971 Frame ass'y 1 E
27
●
322SY258 Support,shaft 2 E
28 405D1023981 Label 2 E
29
●
118SX163 Motor,pulse M303 1 E SANYO
103G770-2264
Drawing
Ref. No. Part No. Part Name Qty Remarks
30
●
322SP211 Support,shaft 2 E
31
●
322FC308E Support,shaft 2 E
32 356D990506 Bracket 1 E
33
●
388D965483 Spring,compression 2 E
34 340D889642A Knob 1 BE
35
●
388F2231F Spring,tension 1 E
36 356D966435A Bracket 2 E
37 128S0740 Switch 3 E OMRON
D323,D324A,D324B V-152-1C25
38 356C890384B Bracket 2 E
39 347S0168 Spacer 1 E
40 327D965378B Gear,spur 1 E
41 327D965408A Gear,spur 1 E
42 327D889531B Gear,spur 2 BE
43 327D990508A Gear,spur 4 E
44 327D990509 Gear,spur 2 E
45 327S1086402 Gear,spur 4 E
46 327S1084002 Gear,spur 2 E
47 327D938589 Gear,spur 1 E
48 334D990640 Roller 1 E
49 334D990520A Roller 1 E
50 334D965395B Roller 1 E
51 334D965394B Roller 2 E
52 334D990499A Roller 1 E
53 334D965393B Roller 1 E
A01 808C965509L Transport section ass'y 1
E INDEXES
-A01, -A01 and
-A01 inclusive
A02 128C966438A Switch ass'y 1 E
A03 128C966437 Switch ass'y 1 E
01 350D889460 Cover 1 BE
02 356D889453C Bracket 1 BE
03 356D889443D Bracket 1 BE
04
●
113C893986A PCB,JNE20 2 BE
05 347S0225 Spacer 4 E MAKKU EITO
SQ-10
06 350D965464A Cover 1 E
07 327D889614C Gear,spur 1 BE
08 319D889434D Shaft 1 BE
09
●
50R3200950 Spring,tension 1 E
10 356D889437A Bracket 1 BE
11
●
322D889566 Support,shaft 4 BE
12 327D888888B Gear,spur 1 BE
13 316S1031 Saddle,locking wire 3 E NIX LWS-1316Z
14
●
322SP224 Support,shaft 2 E
15 327S1124802 Gear,spur 1 E
16 319D965468B Shaft 1 E
17 356D965420C Bracket 1 E
18
●
322SP224 Support,shaft 2 E
19 319D965441B Shaft 1 E
20
●
322D889565 Support,shaft 1 BE FKK
21 327D889531B Gear,spur 1 BE
22 309S0006 Washer,plain 2 E STW-FT80 t=0.5
23 356D965440A Bracket 1 E
24 327D965484A Gear,spur 1 E
25 309S0006 Washer,plain 2 E STW-FT80 t=0.5
26
●
128C889449A Microswitch D320 1 BE OMRON
VX-016-1A3
27 347S0026 Spacer 2 E MAKKU EITO
SQ-5
28 363D965411 Guide 1 E
29 309S0006 Washer,plain 1 E STW-FT80 t=0.5
30 356D965450A Bracket 1 E
31 320C995686 Coupling ass'y 1 E
32 ※ 345A9049781 Cassette,ink ribbon 2 E
33 363C965433A Guide 1 E
34
●
322D990507 Support,shaft 4 E
35
●
388D889463 Spring,tension 4 BE
Drawing
Ref. No. Part No. Part Name Qty Remarks
36 363D889641 Roller 12 E
37 334D965391A Roller 2 E
38 319D965383A Shaft 2 E
39
●
325D990497 Chain 1 E TOCHIGIYA
TM-14
40 308D965462A Screw,special 1 E
41 340D889444A Knob 1 BE
42
●
394C889462A Head,printer 1 BE
43 41B8413415 Bracket 1 E
44
●
394C889462A Head,printer 1 BE
45
●
388D995679 Spring,leaf 1 E
46 357D984314A Plate,mount 1 E
47 327D889412 Gear,spur 1 BE
48
●
322D889566 Support,shaft 1 BE
49 347D889446 Spacer 1 BE
50
●
388D995678 Spring,leaf 1 E
51 356D995682 Retainer 1 E
52 32B5539370 Shaft 1 E
53 356D995680A Plate,keep 1 E
54
●
388D995681 Spring,leaf 1 E
55 319D889435C Shaft 1 BE
56
●
322SP206 Support,shaft 2 E
57 310D889392B Pin,eccentric 1 BE
58 310D889391B Pin 2 BE
59 310D889397C Pin,eccentric 1 BE
60 356D889368H Bracket 1 BE
61
●
50B8420051 Spring,compression 2 BE
62 386D889417E Platen 2 BE
63
●
50B8413532 Spring,leaf 2 BE
64 41B8413523 Bracket 1 BE
A01 808C965509L Transport section ass'y 1
E INDEXES
-A01, -A01 and
-A01 inclusive
A02
●
851C1023974 Printer head ass'y 1 E
A03
●
386C889454 Platen ass'y 1 BE
A04
●
41A8413510 Bracket ass'y 1 BE
01 363D965401B Guide 1 E
02 318S1037 Bushing 4 E KITAGAWA
EDS-17L
03 316S1010 Clamp,cord 4 E KITAGAWA
NK-8N
04 356D965428A Bracket 1 E
05 316S1006 Clamp,cord 2 E KITAGAWA
NK-4N
06 356D965429A Bracket 1 E
07 356D965427C Bracket 1 E
08
●
345D965469 Shield,light 1 E
09
●
388D990511A Spring,torsion 1 E
10 363D965432B Guide 1 E
11
●
146S0064 Detector D302 1 E NIHON ALEPH
OS-815633-701
12 363D990521B Guide 1 E
13 334D965391A Roller 1 E
14 319D990519 Shaft 2 E
15
●
388D990510A Spring,torsion 1 E
16
●
388D889425A Spring,tension 6 BE
17
●
322D990507 Support,shaft 6 E
18 319D990512A Shaft 2 E
19 363D965435D Guide 1 E
20 319D965413 Shaft 5 E
21 363D889641 Roller 24 BE
22
●
388D990517 Spring,torsion 1 E
Drawing
Ref. No. Part No. Part Name Qty Remarks
23 334D965392A Roller 2 E
24 342D990522A Lever 1 E
25 340D990513A Knob 1 E
26 405D1023980 Label 1 E
27 319D990516 Shaft 2 E
28
●
388D990518 Spring,torsion 1 E
29 115K1007870 Bushing,square 4 E
30 316S1028 Bushing 12 E NIX LWS-1211Z
31 316S1028 Bushing 2 E NIX LWS-1211Z
32 356D990523A Bracket 1 E
33
●
146S0029 Detector D311 1 E SHARP
GP1A73A
34
●
113C890526B PCB,light emitter 1 BE SHINKOH
D301L KI874-FF
35 363D965399C Guide 1 E
36
●
345D965402 Shield,light 1 E
37
●
113C890527C PCB,light receptor 1 BE SHINKOH
D301P KI874-FF
38
●
118C889160A Motor M307 1 E NISSEI LM539
39
●
393C965471C Cutter 1 E Ref. No. 38 included
40 345D1024008 Shield,light 1 E
A01 808C965509L Transport section ass'y 1
E INDEXES
-A01, -A01 and
-A01 inclusive
A02
●
846C965470A Cutter section ass'y 1 E
02
●
322SP212 Support,shaft 2 E
03 329C1023973 Shaft,cam 1 E
04 356C965456B Bracket 1 E
05 356C965454B Bracket 1 E
06 341D990456A Arm 2 E
07 347D965457A Plate,adjustment 1 E
08 327D889531B Gear,spur 1 AE
09
●
322D889566 Support,shaft 2 AE
10 341D990455A Arm 2 E
11
●
146S0029 Detector D315 1 E SHARP
GP1A73A
12 356D965352 Bracket 1 E
13 115K1007870 Bushing,square 2 E
14 317D890723A Cap 1 AE
15
●
110A8516840 PCB,light receptor 1 AE
D303P
16 347D889749 Spacer 1 AE
17 334D965387B Roller 1 E
18 334D990641 Roller 1 E
19
●
118C990463 Motor ass'y M304 1 E SANYO
103-546-5245
20 356D990610 Bracket 1 E
Drawing
Ref. No. Part No. Part Name Qty Remarks
21 310D965372A Pin 4 E
22 341D990456A Arm 2 E
23 340F0475 Knob 1 E
24
●
322C965451D Support,shaft 4 E
25
●
388D965489 Spring,compression 2 E
26 327D965379C Gear,spur 1 E
27 341D990455A Arm 2 E
28
●
388D889760E Spring,compression 2 AE
29 355C1023972 Frame 1 E
30
●
146S0029 Detector D316 1 E SHARP
GP1A73A
31 316S1028 Bushing 1 E NIX
LWS-1211Z
32 334C1020422 Roller 1 E
33 356C965453B Bracket 1 E
34
●
388D938169A Spring,tension 2 E
35 356C965455B Bracket 1 E
36
●
322SY258 Support,shaft 4 E
37 334C1020423 Roller 1 E
A01 808C965513J Registration section 1
