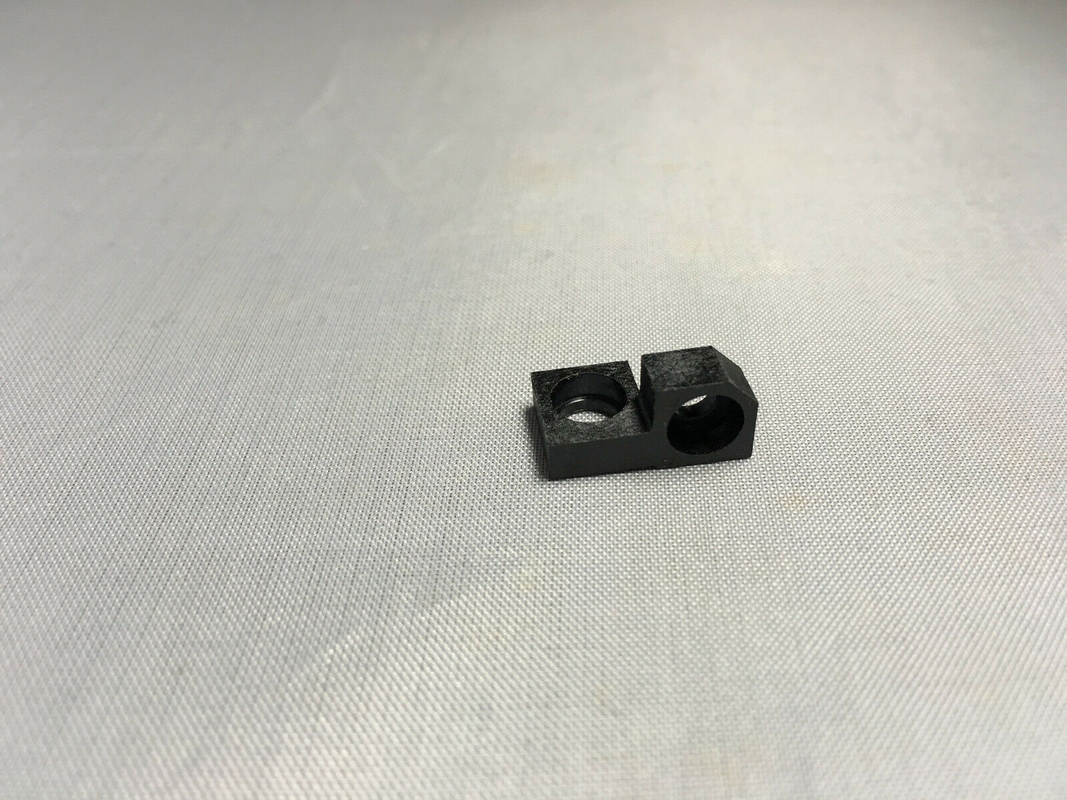

322D980725 Fuji Frontier Minilab Spare Part Shaft Support

Large Image : 322D980725 Fuji Frontier Minilab Spare Part Shaft Support

Product Details:

Place of Origin:	Japan
Brand Name:	Fuji Frontier
part:	minilab part
spare:	minilab accessories

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	carton box
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs/week

Contact Now

Detailed Product Description

Application:	Minilab Printer	Condition:	New
Part Number:	322D980725	Type:	Minilab Spare Part
For Minilab Brand:	Noritsu	For Used On:	Photolab
Part Name:	Shaft Support	Productname:	Fuji Minilab Parts
Forused On:	Photolab	Ttype:	Minilab Spare Part
Maintenance:	Requires Regular Cleaning And Inspection	Function:	Replacement Parts For Fuji Minilab Photo Processing Machines
Origin:	Manufactured In Japan Or Authorized Factories	Product Type:	Minilab Spare Parts
Availability:	In Stock For Common Parts, Made To Order For Rare Parts	Support:	Technical Support Available
Modelsupport:	Supports Multiple Noritsu Minilab Models

Please check our new listing minilab parts and printer ribbon
www.aliexpress.com/store/1102636450

For more prompt response, please contact us

Mob: 86 18376713855

Email: linna@minilabspare-parts.com

We chat: idaminilab / 86 18376713855

Web:https://www.idaminilab.com/
